2142 Vertical CNC Router
2142 Vertical CNC Router

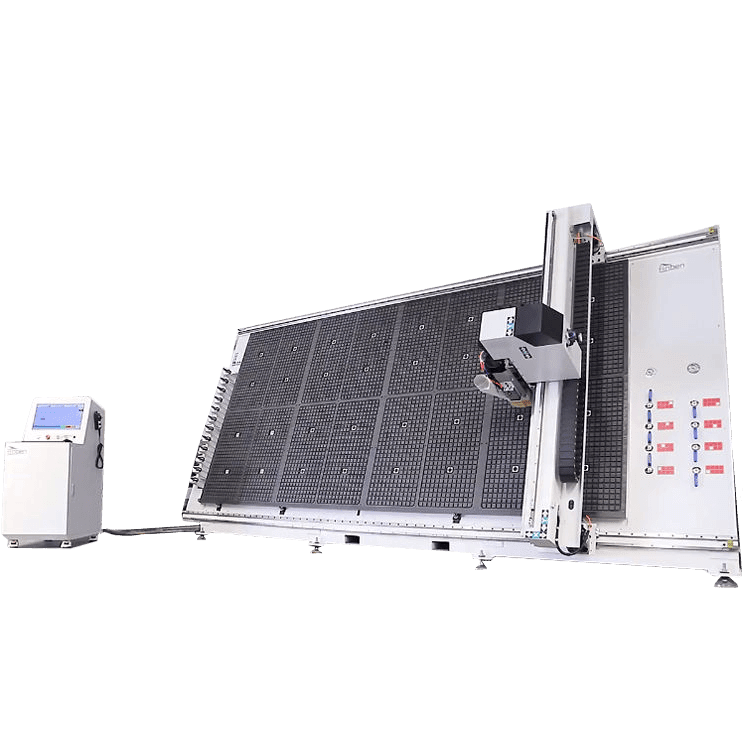

Vertical CNC Router
Our Vertical CNC Router will elevate your woodworking game, the latest addition to our lineup. Responding to the needs of our customers for a space-saving solution without compromising on cutting capacity, this machine delivers big results in a compact package.
Benefits
- Versatile Performance
- Space-Saving Design
- Durable Construction
- Precision Cutting
Features
- Long-lasting Performance
- Precision Cutting
- Efficient Operation
- Powerful Spindle
- User-Friendly Control
- Flexible Power Options
Technical Data
Working Area(X*Y*Z) |
2100*4200*200mm |
Cutting Accuracy |
±0.03/1000mm |

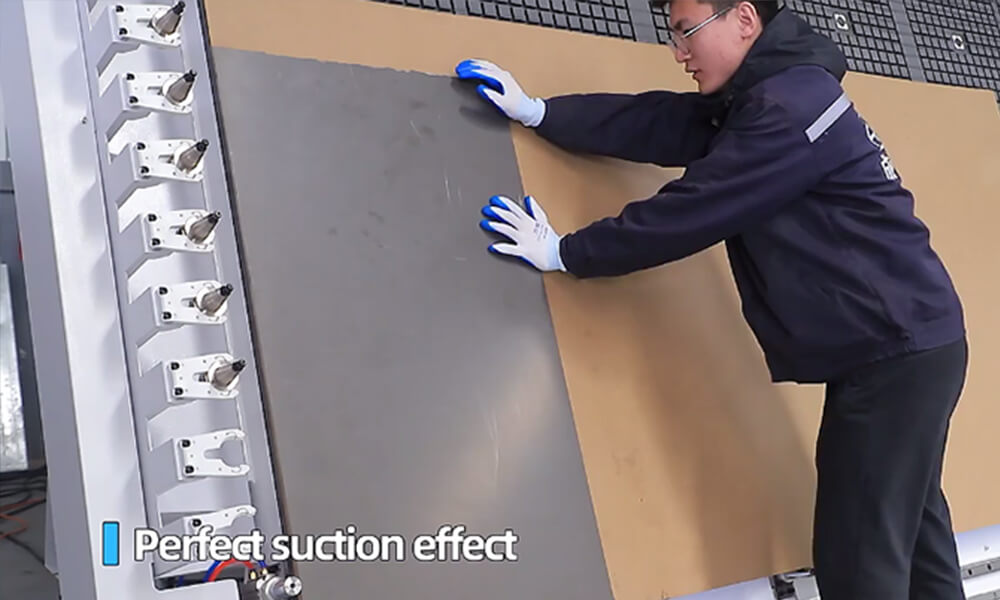

Table Surface |
Vacuum Adsorption Table |

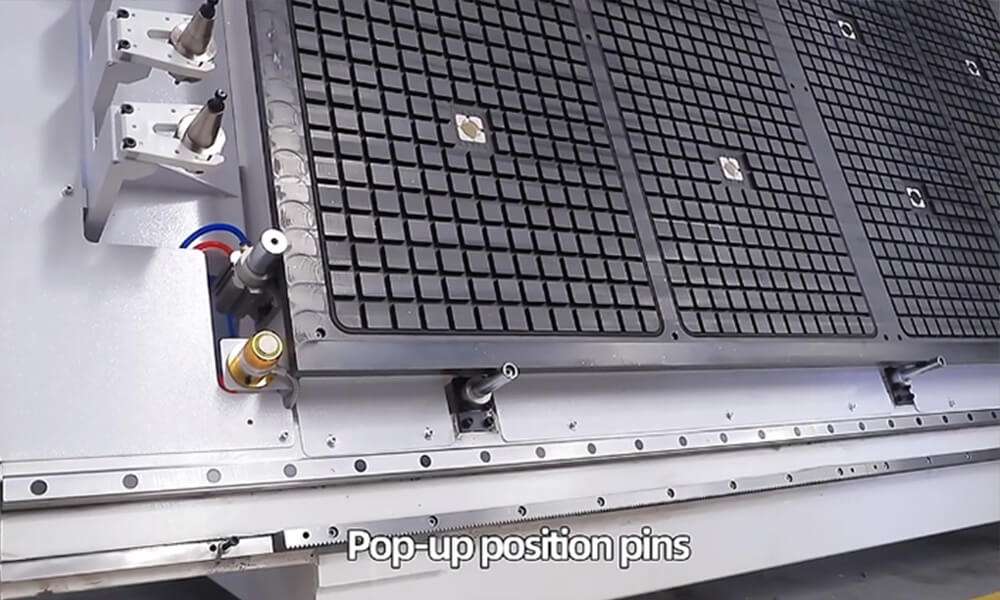

Material Positioning
Method |
Repeat Positioning By
Positioning The Cylinder. |
Frame |
Heavy-Duty Industrial Class
Square Tube Strong Structure |

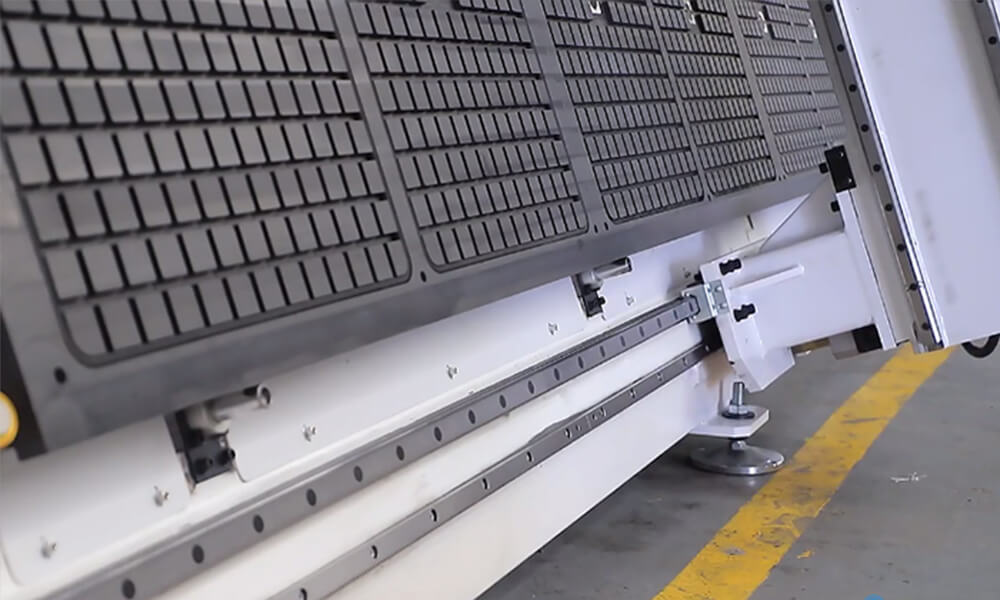

X, Y Structure |
Rack And Pinion Drive, Germany
ASK #25 Rail Linear Bearings |
Max. Rapid Travel Rate |
50000mm/Min |
Max. Working Speed |
30000mm/Min |
Z Structure |
Taiwan Ball Screw |
Spindle Power |
Italy HSD 9KW Air Cooling
Spindle |

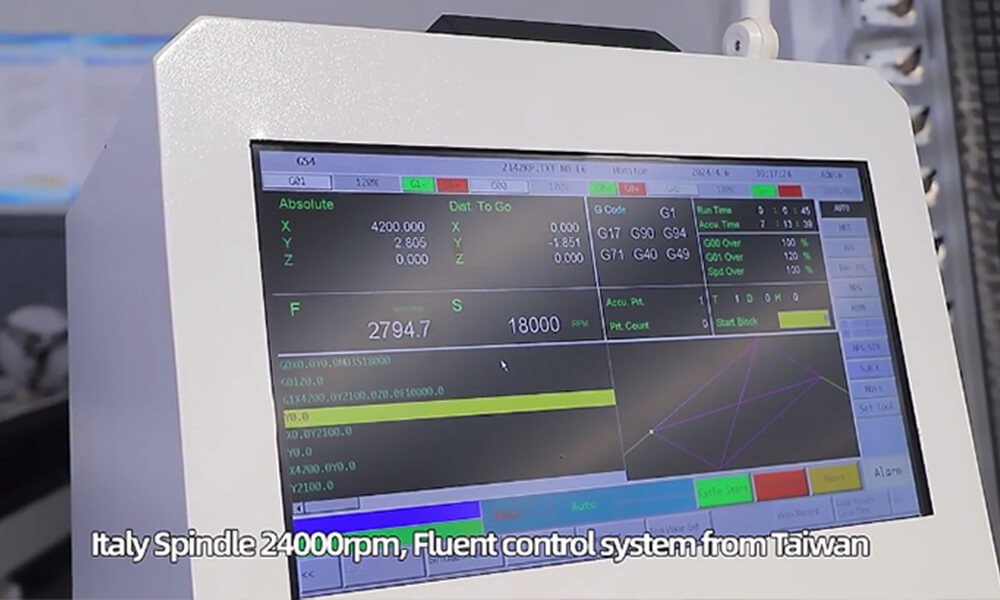

Operating System |
Taiwan SYNTEC 60W-E Control
System |
Drive Motors |
Japan Yaskawa Drive And Yaskawa
850W Servo Motors |
Vfd |
11kw Delta Vfd |
Spindle Speed |
0-24000rpm |
Working Voltage |
AC380v, 50hz,3ph (Option: 220v) |
Command Language |
G Code |
Control Box |
Place The Computer’s Big Control
Box |
Collet |
Er25 |
Software Compatibility |
Art Cam/Power Milltyep 3 |
Lubrication System |
Automatic Lubrication System |
