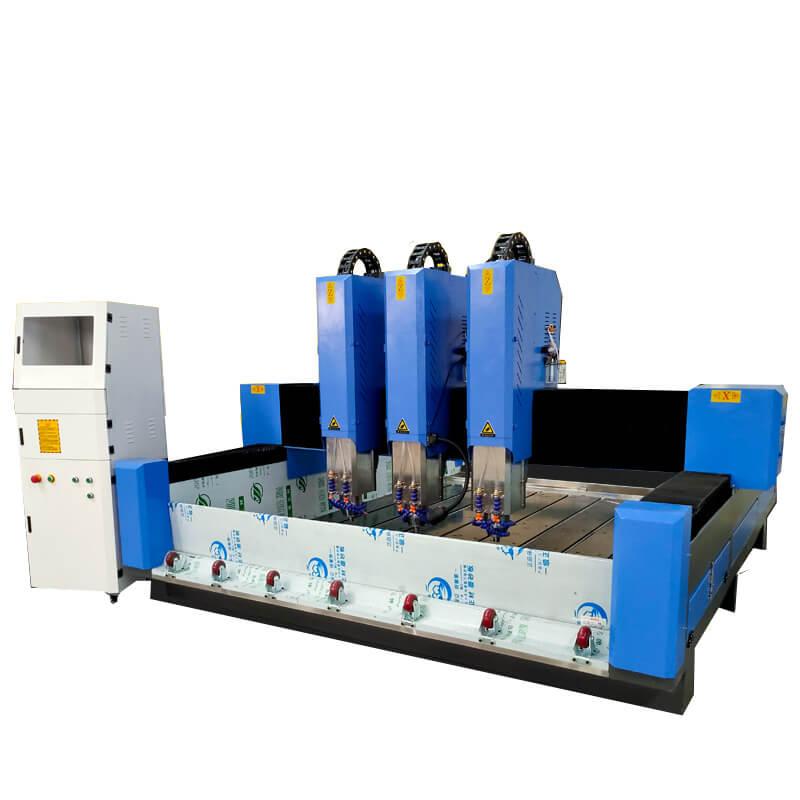

5 Axis CNC Router Machine is a machine that works on wood and aluminium composite. It can also be used on foams, plastics, polymers and other materials. Basically, this router works by cutting portions of the material to create unique shapes and designs. It can also make 3D engravings that many people love. If you want to avoid the risk of making mistakes when cutting material, let the router do the job for you.
Estimated Shipping: 5-7 WEEKS
Technical Info
- New Top Grade Heavy Duty Welded Steel Frame
- High Precision HQD 9KW ATC Air Cooling Spindle
- Perfect Protection Function Fuling Inverter
- High Precision Stepper Motors And Drivers
- Strong T-Slot Vacuum Table
- High Accuracy Taiwan Hiwin
- Linear Guide For XYZ Axis
- High Precision Helical Rack And Gear Transmission
- High Reliability And Smooth Operation Taiwan TBI Ball Screw
Model |
| BI13250-5 | BI1530-5 | BI2030-5 |
Travel | X-Axis | 1300mm | 1500mm | 2000mm |
Y-Axis | 2500mm | 3000mm | 3000mmm | |
Z-Axis | 500mm | 500mm | 500mm | |
Traveling Positioning Accuracy | 0.01/300mm | |||
Repositioning Accuracy | 0.03mm/300mm | |||
Max. Rapid travel Rate | 50000mm/min | |||
Max. Working Speed | 30000mm/min | |||
| Rotary Axis | C Axis: ±360°, Aaxis: ±110° | ||
Spindle | Spindle Power: | 9.0KW | ||
Spindle Type | 1 or Multi Head HQD ATC air cooling spindle | |||
Speed: | 0-24,000 RPM | |||
Power Required | Motor | X,Y,Z Axis 1.8kw Japan Yaskawa Servo Motors A,C Axis: 750W Japan Yaskawa Servo Motors | ||
Working Voltage | AC380V/50/60HZ,3PH(Option:220V) | |||
Machine Specs | Table Type | Vacuum and T-slot Working Table | ||
Table Size | 1300mm*2500mm | 1500mm*3000mm | 2000mm*3000mm | |
X, Y Structure | Hiwin Rail Linear Bearings, Rack and Pinion Drive | |||
Z Structure | Ball Screw, Hiwin Rail Linear Bearings | |||
Machine Footprint | 3670mm*2270mm | 4170mm*2270mm | 4170mm*2270mm | |
Overall System Height | 2080mm | 2080mm | 2080mm | |
Typical System Weight | 1300KG | 1500KG | 1750KG | |
Linear Motion | Axis Motion | Ballscrew and Stepper Driver | ||
Guideways | Precision Linear Guideway | |||
Construction | Stand | Welded Steel (Included) | ||
Machine Base | Cast Iron | |||
Gantry | Aluminum | |||
Operation | Operating System | Osai / Siemens / Syntec | ||
Command Language | G Code &M Code | |||
Highlight Component
Square Steel Integrated Gantry.
It adopts a square steel gantry with a thickness of one centimeter after heat treatment. It makes the machine work smooth and increases excellent accuracy and precision.
HSD Italian Spindle.
It uses high-quality bearings, which gives it longer service life. The bearing has a dust cover, which can effectively isolate dust and make it safer to operate the machine. High-strength power gives CNC router large engraving force, high precision, and long life. It adopts the grinding process, which can improve the concentricity of the motor and prolong the service life.
Imported Servo Motor.
The imported servo motor enables more precise control and shorter settling times. Each model is equipped with a package of software algorithms that tune automatically, suppress vibration, and compensate for friction and ripple effects.
Taiwan TBI Ball Screw.
Rigidly selected materials, intensive heat treating, and processing techniques, backed by years of experience, have resulted in the most durable ball screws manufactured. The high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.
PMI Linear Guideway.
PMI linear guideway was applied to the CNC router machine. The frictional resistance of a linear guideway is only 1/20th to 1/40th of that in a slide guide. With a linear guideway, good lubrication can be easily achieved by supplying grease through the grease nipple on the carriage or utilizing a centralized oil pumping system, thus the frictional resistance is decreased and the accuracy could be maintained for long period. Due to the characteristic of low frictional resistance, the required driving force is much lower than in other systems, thus the power consumption is small. Moreover, the temperature rising effect is small even under high-speed operation.
Material&Application
If you are running a medium-sized workshop or factory and planning to open your business to larger projects, the ACT CNC Router Machine is a good choice among many stylist CNC routers machines. The automatic tool change CNC machine can achieve the goal of changing mills quickly and automatically when the machine can’t need to stop the work. It saves lots of time and lower mistakes for your CNC work. it can ensure you process an abundance of different materials such as:
