Automatic Curved Edge Banding Machine
Automatic Curved Edge Banding Machine

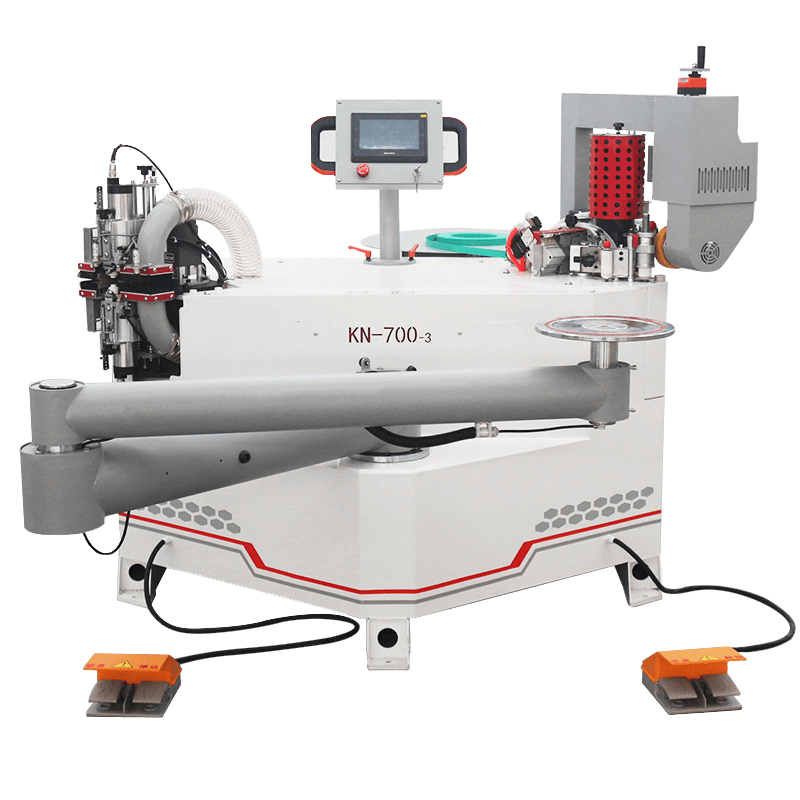

Automatic Curved Edge Banding Machine-700-3
Upgrade your woodworking game with our Automatic Curved Edge Banding Machine – a versatile
solution designed for precision and efficiency. Comprising an edge banding unit
and a trimming unit, this machine is tailor-made for curved wood boards.
Benefits
- Ideal for Curved Shapes
Especially suitable for round, oval, and rounded rectangle shapes, providing versatility
in your woodworking projects.
- Rotatable LCD
The LCD is rotatable for easy operation, ensuring a user-friendly experience.
- Advanced Gluing System
Our automatic curved edge banding machine is equipped with an upper glue pot, boasting a 2600ml capacity. It supports both PUR and EVA, featuring an insulation function that shortens heating time. One-click
glue discharge facilitates easy glue change.
- Higher Machine Head
An upgraded machine head allows the selection of wider sealing strips, providing
flexibility in your projects.
- Combined Banding and Trimming
This automatic curved edge banding machine seamlessly combines edge banding and trimming in one, simplifying operations, especially for larger boards.
![Automatic Curved Edge Banding Machine](https://www.bestingroup.com/wp-content/uploads/2024/01/Curved-Edge-Banding-Machine.png)
Features
- Automatic Feeding for Curves
Ideal for round, oval, and rounded rectangle boards, the machine offers automatic feeding for efficient processing.
- Laser Ranging for Precision
The laser ranging feature ensures precise docking with an error of ±0.3mm, eliminating the need for manual cut strip adjustments.
- Dual Glue Options with Easy Discharge
The machine supports both PUR and EVA glues, with a convenient one-click discharge feature for quick and hassle-free glue changes.
- Servo Motor for Stability
Featuring a servo motor for fast action response and low noise, the machine ensures stability during operations.
- High-Speed Feeding
With a feeding speed ranging from 0 to 30cm/s, the machine delivers high work efficiency for your projects.
- Efficient Cleaning Mechanism
The machine comes equipped with four automatic cleaning devices that spray cleaning liquid. Adjustable spray and intermittent times enhance the cleaning process.
- Expanded Glue Pot Capacity
The glue pot now holds 2600ml, reducing the need for frequent glue additions. The heat preservation function minimizes waiting time for heating with just one click.
- Intuitive Touch Screen
The touch screen can store 20 kinds of sheet data, streamlining the use of sheet data and significantly improving work efficiency.
- Pressure-Retaining Air Storage Tank
The adoption of a 2L pressure-retaining air storage tank ensures the normal operation of pneumatic components in unstable external air pressure conditions.
- Enhanced Bonding with Heating Device
A single heating device enhances the bonding between strips and the board, ensuring a firm connection.
- User-Friendly Foot Switches
Both the edge banding unit and the trimming unit come with foot switches, offering a simple and convenient operational experience.
Technical Data
Voltage |
380V/50Hz/3Phase |
|
Air Pressure |
0.6-0.8Mpa |
Glue Pot Temperature |
110-210°C |
Head Rotation Angle |
15° |
|
Trimming Speed |
0-24cm/s |
Diameter of External Dust Collector |
150mm |
|
Total Power |
6.5kW |
Glue Pot Capacity |
2600ml |
|
Type of Hot Melt Adhesives |
EVA/PUR |
Edge Strip Width |
14-70mm |
|
Edge Strip Thickness |
0.5-3mm |
Boards Thickness for Trimming |
<14mm single-sided trimming; 14-70mm
double-sided trimming |
|
Inner Arc Radius |
≥20mm |
Gas Tank Volume |
2L |
|
Banding Speed |
0-30cm/s |
Applicable Edge Strip Material |
PVC/Plastic/Melamine/Veneer (need to be
customized) |
|
Packing Dimension |
1870*1400*1530 (L*W*H mm) |
Packing Weight |
530kg |
