Compact Automatic Edge Banding Machine
Compact Automatic Edge Banding Machine
Compact Automatic Edge Banding Machine

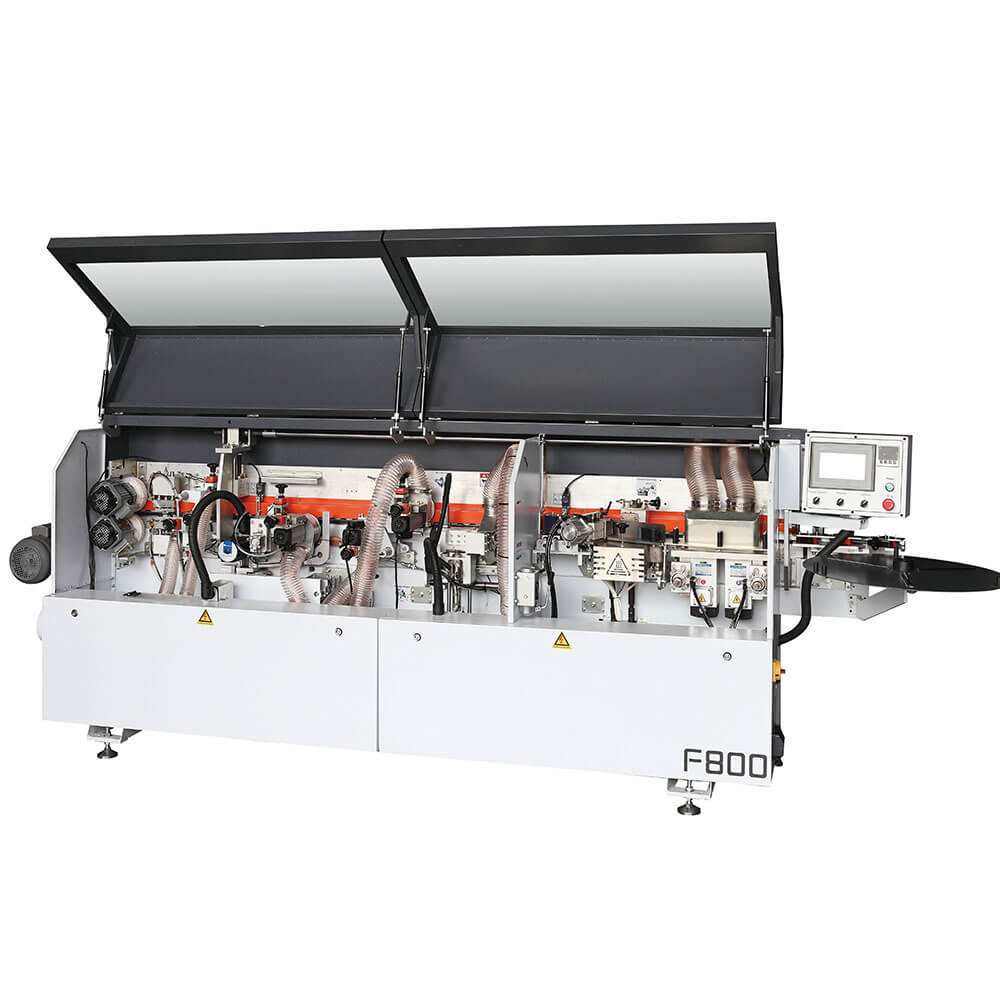

The Bestin’s compact automatic edge banding machine is designed for fast, precise, and efficient edge banding on wood board. It handles edge band thicknesses from 0.4mm to 3mm with quick adjustments.
Equipped with advanced trimming systems, this machine ensures clean, seamless results every time.
Built for durability, it’s perfect for small workshops and mobile installations.
Benefits
- Speed and Efficiency
The rapid changeover of edge thickness allows you to maintain high production rates with minimal downtime.
- User-Friendly
The touchscreen interface simplifies machine operation, making it accessible for users of all skill levels.
- Durable and Reliable
Built to withstand daily use, ensuring long-lasting performance.
- Consistent Results
Achieve precise edge banding with the pre-milling unit and advanced trimming systems, perfect for high-quality projects.
- Easy Maintenance
The quick-change glue pot and user-accessible components reduce machine maintenance time and effort.
- Compact Design
Ideal for small workshops or mobile installations, without compromising functionality or power.
Features
- Quick Edge Changeover
Rapid switch between 0.5mm, 1mm, and 2mm edge bands for faster production.
- Advanced Touchscreen Interface
Control machine functions and monitor operations with on-screen error diagnostics and parameter settings.
- Heavy-Duty Feed System
The chain feed system with rubber-covered chain pads ensures smooth and accurate feeding of workpieces.

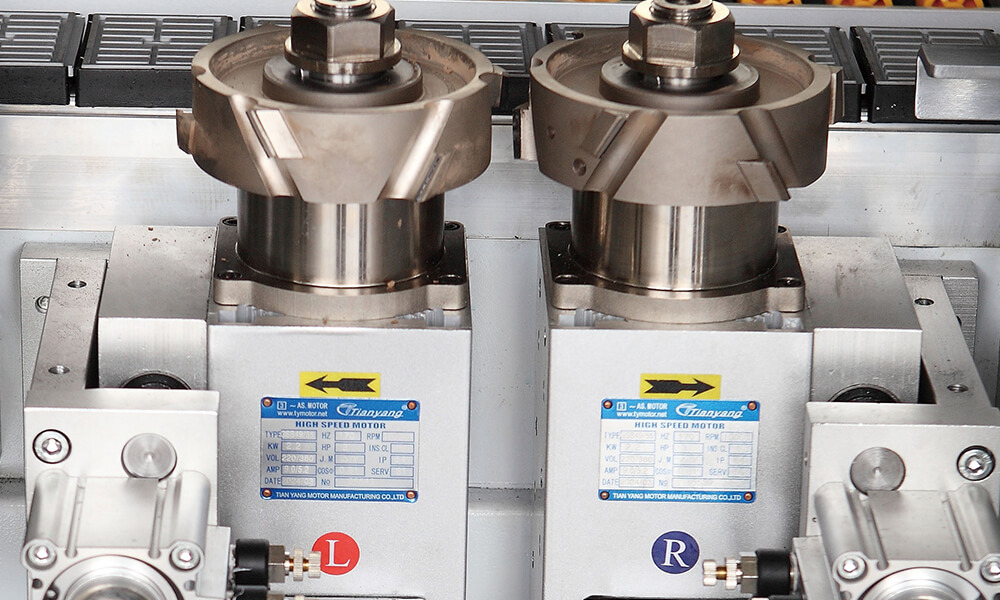

- Pre-Milling Unit
This unit has diamond cutter heads for precise edge preparation, removing up to 3mm of the panel.
- Automatic Edge Feeding
Feeds 0.4mm–3mm thick edge banding with minimal manual intervention.
- Corner Rounding Unit
High-frequency motors apply a perfect R1 or R2 radius on the edges.
- Multi-Radius Scrapers
Automatically adjust to apply either a 1mm or 2mm radius for a clean finish.
- Buffing Units
Polish ABS and PVC edges, removing any discoloration for a smooth, glossy finish.
Technical Data
|
Working Area(X*Y*Z) |
2100*4200*200mm |
|
Cutting Accuracy |
±0.03/1000mm |
|
Table Surface |
Vacuum Adsorption Table |
|
Material Positioning
Method |
Repeat Positioning By
Positioning The Cylinder. |
|
Frame |
Heavy-Duty Industrial Class
Square Tube Strong Structure |
|
X, Y Structure |
Rack And Pinion Drive, Germany
ASK #25 Rail Linear Bearings |
|
Max. Rapid Travel Rate |
50000mm/Min |
|
Max. Working Speed |
30000mm/Min |
|
Z Structure |
Taiwan Ball Screw |
|
Spindle Power |
Italy HSD 9KW Air Cooling
Spindle |
|
Operating System |
Taiwan SYNTEC 60W-E Control
System |
|
Drive Motors |
Japan Yaskawa Drive And Yaskawa
850W Servo Motors |
|
Vfd |
11kw Delta Vfd |
|
Spindle Speed |
0-24000rpm |
|
Working Voltage |
AC380v, 50hz,3ph (Option: 220v) |
|
Command Language |
G Code |
|
Control Box |
Place The Computer’s Big Control
Box |
|
Collet |
Er25 |
|
Software Compatibility |
Art Cam/Power Milltyep 3 |
|
Lubrication System |
Automatic Lubrication System |
