Contour Edge Bander

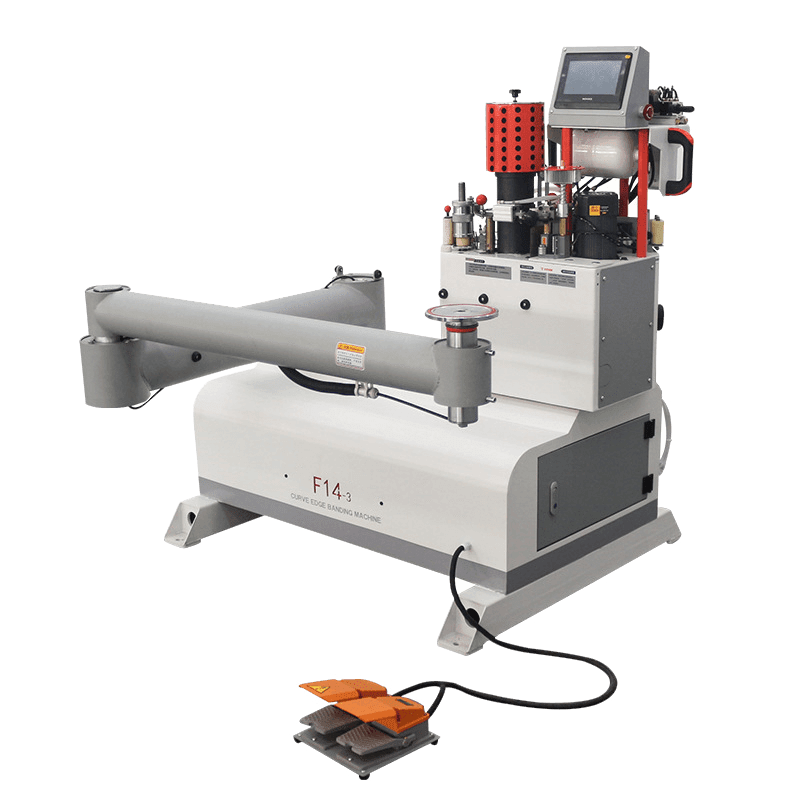

Contour Edge Bander F14-3

Our contour edge bander is not just a machine; it’s a precision tool designed to bring your woodworking vision to life. It offered unmatched accuracy and efficiency in every curve wood board!

Benefits

Stacked Arm Length of 207cm

The extended stacked arm, spanning 207cm, ensures versatility in handling various-sized boards with ease.

Laser Butt Joints with ± 0.3mm Docking Error

Utilizing laser butt joints, our contour edge bander achieves unparalleled precision with a docking error of just ± 0.3mm. Say goodbye to secondary manual adjustments.

Rotatable Edge Banding Unit Assembly

The edge banding unit can smoothly rotate 120°, offering enhanced compatibility for different plate shapes and sizes.

Suitable for a Variety of Sheet Sizes and Shapes

Versatility is at the core of our contour edge bander, making it suitable for a wide range of sheet sizes and shapes.

Seals up to 1.2*1.8m L-Shape Plates

Tackle L-shape plates effortlessly with our contour edge bander, delivering precision and efficiency in every seal.

Circular Diameter of 3m

The machine’s circular movement spans a diameter of 3m, ensuring comprehensive coverage for curved projects.

Small Platform as a Standard Accessory

Included as a standard accessory, the small platform facilitates easy edging for smaller panels, adding convenience to your workflow.

Features

Laser Band Breaking

Incorporating infrared laser induction, the automatic belt breaking ensures precise head-to-tail docking with an impressive accuracy of ±0.3mm.

Hot Air System

The hot air system aids in heating the edge banding strip, enhancing its flexibility and improving adhesion to the board.

Rotatable Edge Banding Unit (120°)

Increase plate compatibility with a rotatable edge banding unit that can be adjusted up to 120°. The touch screen control panel stores 20 sets of data for efficient batch production.

Glue Clearing Device

Two automatic cleaning devices spray glue remover, preventing glue residue on the laminating wheel and pressure plate.

Adaptive Speed

Enjoy automatic acceleration and deceleration, ensuring seamless operation with improved efficiency. Automatic adjustments when turning and going straight prevent mistakes and optimize work processes.

Stacked Arm Design (Total Length 225cm)

The innovative circular stacked arm design, with a total length of 225cm, enhances load-bearing strength, making operations lighter and more flexible.

Technical Data

Name	Contour Edge Bander Machine
Voltage	220V/50HZ/1phase（can be customized）
Air pressure	0.5-0.7Mpa
Total power	4kw
Glue type	PUR/EVA
Glue pot capacity	2600ml
Glue pot temperature	110℃-210℃
Strip thickness	0.5-3mm
Speed	4-20cm/s
Strip width	14-70mm
Size	165010001540mm
