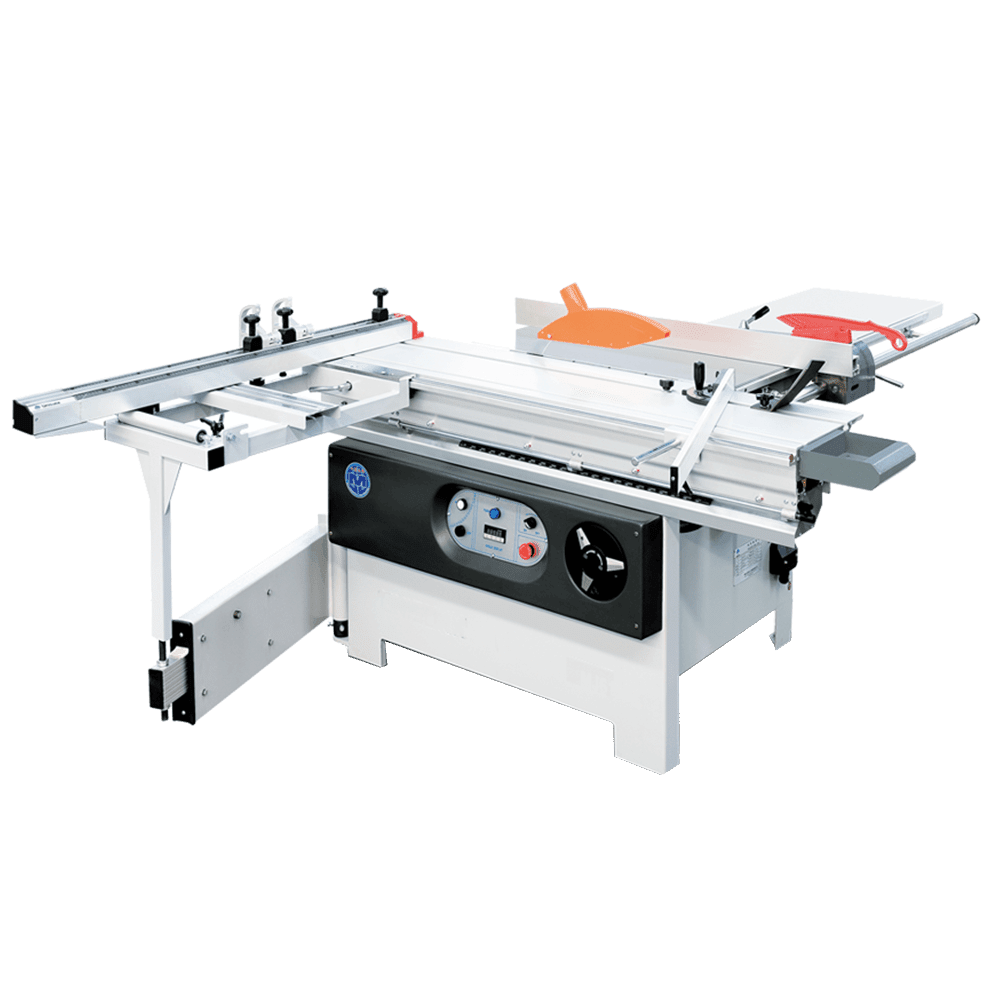

DIY Sliding Table Saw
DIY Sliding Table Saw
Our DIY sliding table saw is designed for precision cutting work. And, thanks to its compact design, it is used in diy or family woodworking projects. Whether cutting large panels or making bevel cuts, it can provide reliable performance and convenience.
Benefits
-
Precision Cutting
Thanks to the sturdy sliding table, it can achieve smooth and accurate cuts, even on large panels,
-
Clean Workspace
The dust collection system keeps your work area clean, improving productivity and safety.
-
Versatile Cutting Angles
The adjustable saw blade tilt allows you to make bevel cuts up to 45° with ease.
-
Durable & Long-Lasting
The cast-iron table and aluminum components keep the table saw last.
- Easy Handling of Large Panels
- Powerful Performance
Features
- Aluminium Sliding Table
1600 x 370 mm anodized aluminum table, providing a smooth, durable surface for accurate cuts.
- Efficient Dust Collection
100 mm connect a dust collector to maintain a clean workspace.
- Telescopic Arm & Square Table
Sturdy telescopic arm and a movable square table for easy handling of materials.
- Hardened Guide Rails
The table features hardened guide rails for smooth and precise sliding action.
- Extractable Telescopic Fence
djustable fence that can be mounted at the front or rear of the table for added flexibility.
- Saw Blade Tilt Adjustment
A handwheel and scale allow for precise tilt of the saw blade up to 45°, ideal for angled cuts.
- Table Extensions
Extra support when working with larger panels.
- Cast-Iron Machine Table
The cast-iron table is built with top accuracy and polished for smooth operation.
- Powerful Drive Motor
A 5.5 kW motor ensures a constant cutting speed, even at a cutting height of 75 mm.
- Precise Rip Fence
The aluminum rip fence comes with fine adjustment and a 30 mm precise round rod, offering for added accuracy.
Technical Data
|
Working Area(X*Y*Z) |
2100*4200*200mm |
|
Cutting Accuracy |
±0.03/1000mm |
|
Table Surface |
Vacuum Adsorption Table |
|
Material Positioning
Method |
Repeat Positioning By
Positioning The Cylinder. |
|
Frame |
Heavy-Duty Industrial Class
Square Tube Strong Structure |
|
X, Y Structure |
Rack And Pinion Drive, Germany
ASK #25 Rail Linear Bearings |
|
Max. Rapid Travel Rate |
50000mm/Min |
|
Max. Working Speed |
30000mm/Min |
|
Z Structure |
Taiwan Ball Screw |
|
Spindle Power |
Italy HSD 9KW Air Cooling
Spindle |
|
Operating System |
Taiwan SYNTEC 60W-E Control
System |
|
Drive Motors |
Japan Yaskawa Drive And Yaskawa
850W Servo Motors |
|
Vfd |
11kw Delta Vfd |
|
Spindle Speed |
0-24000rpm |
|
Working Voltage |
AC380v, 50hz,3ph (Option: 220v) |
|
Command Language |
G Code |
|
Control Box |
Place The Computer’s Big Control
Box |
|
Collet |
Er25 |
|
Software Compatibility |
Art Cam/Power Milltyep 3 |
|
Lubrication System |
Automatic Lubrication System |
