Sliding Panel Table Saw
Sliding Panel Table Saw
Precision, Power, and Durability
0-45 Degree Cutting
Powerful Motors
Sliding Panel Table Saw

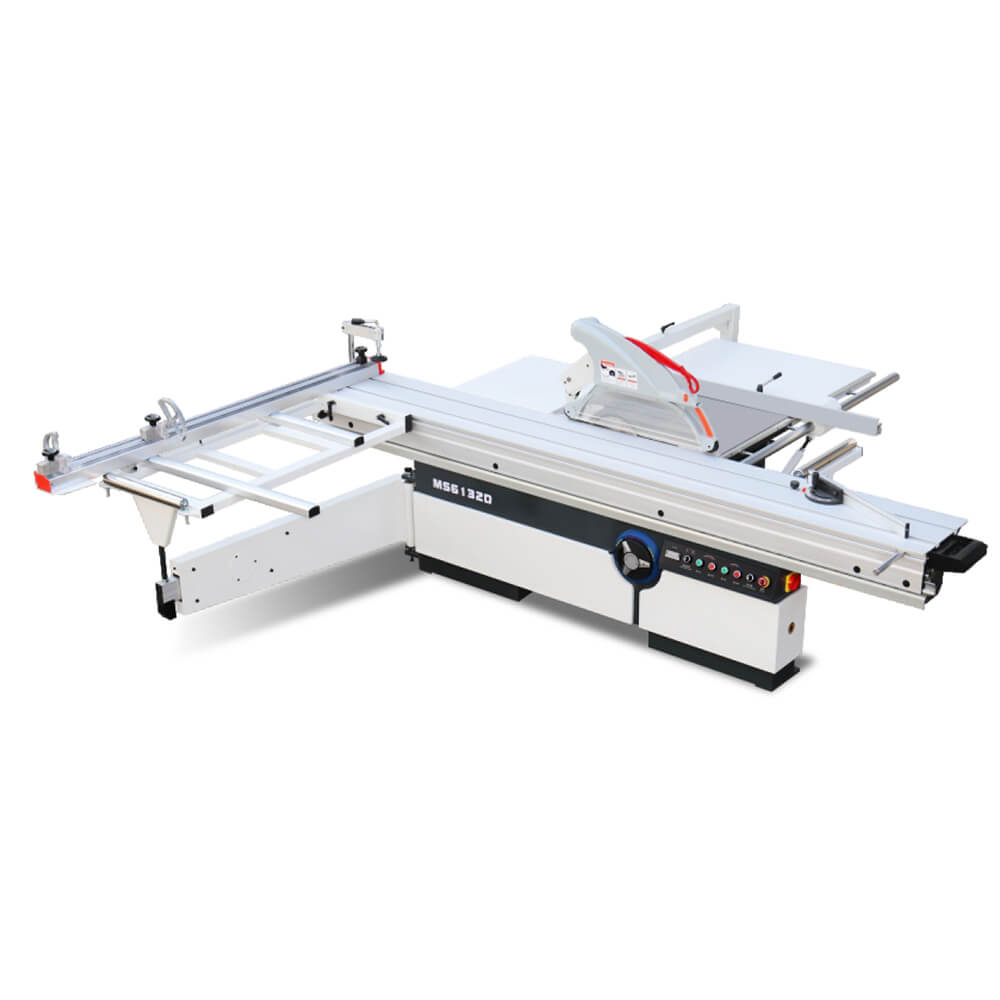

The BESTIN sliding panel table saw is made for precision and power. It features a precision anodized aluminum sliding table with a ball-bearing guide system. It can ensure smooth and effortless table movement. With a robust 5.5kw main motor and a 1.1kw scoring motor, this saw delivers exceptional cutting performance.
Benefits
-
Precision Cutting
Achieve smooth, accurate cuts every time, enhancing the quality of your woodworking projects.
- Enhanced Safety
The guard and dust port promote a safer working environment by reducing debris and hazards.
- Versatility
Ideal for various cutting tasks, from large sheets to intricate cuts, making it suitable for both professional woodworkers.
- Durability
Built with high-quality materials, ensuring long-lasting performance and reliability in your workshop.
- User-Friendly
The manual adjustments and clear indicators make it easy for users of all skill levels to operate efficiently.
Features
- Heavy-Duty Construction
The solid cast iron main table is ground and polished for durability. It can provide a stable cutting feature.
- Accurate Crosscutting
An aluminum crosscut miter fence with dual flip stops and inch/metric scales, ensuring precise measurements for crosscuts.
- Motor-Driven Blade Adjustments
The motor-driven adjustment make it easy to rise/fall and tilt the main saw blade.
- Safety Features
A guard with a built-in dust port keeps the workspace clean and safe during operations.
- Supportive Outrigger
The heavy-duty outrigger provides strong support for larger workpieces during cutting.
- Convenient Scoring Saw Adjustment
Features easy manual scoring saw adjustment for enhanced cutting accuracy.
- Extension Tables
Side and back extension tables offer additional support and flexibility for larger projects.
Technical Data
|
Dimension Of Sliding Table |
3200 × 390mm |
|
Gross Cut Capacity |
3200mm |
|
Wide Of Cut Between Saw Blade And Rip |
1250mm |
|
Saw Blade Diameter |
φ300mm(φ250-φ350) |
|
Height Of Cut 300Mm |
80mm |
|
Height Of Cut With Saw Blade 300mm At 45° |
φ55mm |
|
Speed Of Main Saw Spindle |
3000/4000/5000rpm |
|
Main Spindle Diameter |
φ30mm |
|
Tilting Saw Blade |
0-45° |
|
Main Motor |
5.5kw |
|
Scoring Saw Blade Diameter |
φ120mm |
|
Speeg Of Scoring Saw Blade |
8000r/min |
|
Scoring Spindle Diameter |
φ20mm |
|
Scoring Motor |
1.1kw |
|
Net Weight |
770kg |
|
Overall Dimensions |
3250×3500×870mm |
